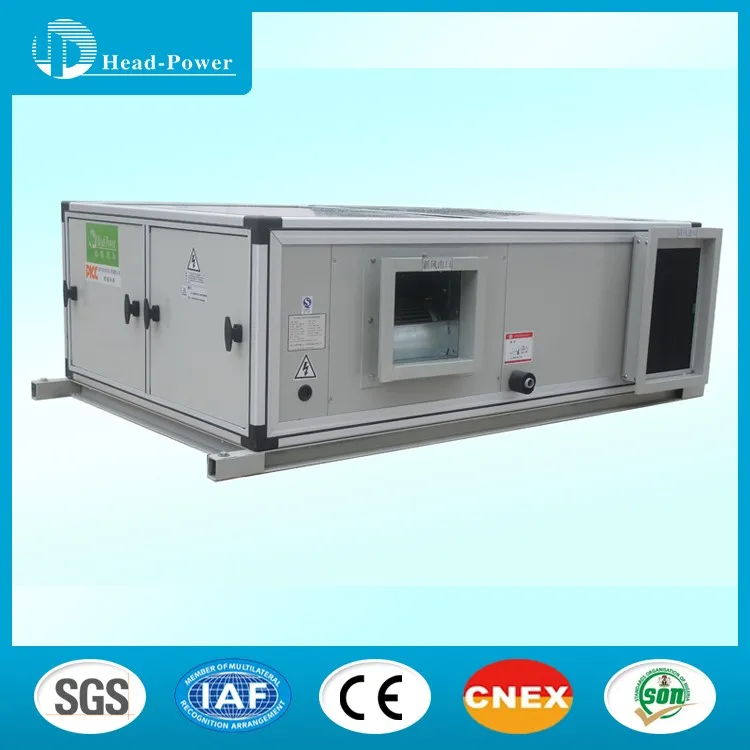

Energy Recovery Ventilators ERVs

Price:

US 200-20000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

600 Set/Sets per Week

Port:

Guangzhou/Shenzhen

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Head-Power

Products Model:

HQD

Products Details
Company Profile

Quick Details

Brand Name: Head-Power

Model Number: HQD

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Specifications subject to changes without prior notice.
Delivery Detail: Shipped in 30 days after payment

Specifications

Specifications:

Model			HQD10	HQD15	HQD20	HQD25
Air Flow		m3/h	1000	1500	2000	2500
Power supply			380V/3PH/50Hz, 220V/1PH/50Hz
Supply fan	Type		Centrifugal type
	Air volume	m3/h	1000	1500	2000	2500
	External static pressure	Pa	80	120	150	150
	Motor power	W	250	250	550	550
	Drive method		Driect drive
Exhaust fan	Type		Centrifugal type
	Air volume	m3/h	1000	`1500	2000	2500
	External static pressure	Pa	80	120	150	150
	Motor power	W	250	250	550	550
	Drive method		Driect drive
Heat recovery	Type		Plate type heat recovery
	Material		Paper core/aluminium core
	Enthalpy efficiency		65% / 68%	65% / 68%	65% / 68%	65% / 68%
	Temp.efficiency		72% / 78%	72% / 78%	72% / 78%	72% / 78%
Noise level		dB(A)	38	39	42	48
Dimensions(LWH)		mm	1300950410		1600950410
Net weight		kg	56	60	80	100

Description:
1. Galvanized steel sheet, smaller models is unpainted as standard, bigger models outside painteded.
2. This heat recovery unit is simply for heat recovery and ventilation, combined with supply fan and motor, exhaust fan and motor, plate type heat recovery and frame work.
3. Energy saving and improve indoor air quality: this fresh air unit can not only introduce fresh air to improve indoor air quality, at the same time, it exchanges heat with exhaust air, which can precool for preheat fresh air, save much energy.
4. The heat recovery material is paper core or aluminium core. Paper core can recover full heat, while aluminium core recover sensible heat only but it has longer lifespan and can bear higher temperature.
5. Washable nylon prefilter is installed at fresh air intake. Other types of filter is optional.
6. Air volume: 1000 m3/h ~10000 m3/h.

Advantages:

1. Heat and energy heat recovery, saving energy for building consumption.
2. Introduce fresh air, exhaust polluted air, improvde indoor air quality;
3. Wide volume range, meet different requirements of industrial, commercial and residential building;
4. Good quality heat exchange device, high efficiency and long lifespan.
5. Easy for maintainance and operation, low cost.

Applications:
1. Commercial buildings: Star hotels, restaurants, office buildings, schools, supermarkets, shopping mall, entertainment centers,theaters,etc
2. Industrial field: Electronic factory,pharmaceutical factory, precision instrument factory,petrochemical factory,tobacco factory, cooling for production process, etc.
3. Public places: Airports, stations, exhibition halls, stadiums, museums, convention centers, church,etc

Our Services

1. We can provide OEM service for customers.

2. We produce according to customers' requirements.

3. Factory visitting.

4. General testing and operational test carried out for every unit before delivery.

FAQ

How about the quality of your product? -- Our products manufactured strictly according to national and international standard. -- We have CE ,ISO certification -- We take a test on every product before delivery.

How about price of this product?

-- We can give the lowest price than market one. -- We do quotation as soon as possible for any customer. -- Discount can be given according to quantity.

What is the MOQ?

-- 1 set.

Can you do custom-made machines? -- We can make products according to customer's requirements.

What is the voltage and refrigerant?

-- standard chiller usual use 380V/3phase/50HZ and refrigerant. -- Custom-made chiller use other voltage and refrigerant by according to client's requirement.

1. Payment Terms:
T/T - 30% deposit before production,70% balance before delivery, or other terms

2. Delivery Detail:
About 30 workdays after payments.

3.Pacage Terms:
International Standard Wooden Case for Export.

Guangdong Head-Power Air Conditioning Co., Ltd. located at Shiling Chenbian Section,321National Highway, Shishan Town,Nanhai District, Foshan, Guangdong, China. We've been specilized in central air conditioning for over ten years, which makes us have rich experience in producing all kinds of central air conditioning, we also carry on many projects for factory, hotel, commercial building,etc .

Our factory has introduced many advanced equipments and technology from abroad and built the most authoritative platform for product testing. Besides we have a close relationship with Central South University in Hunan Province and cooperation with famous institutes. With so strong technical background, all products meet national technical standards.

We provide a wide range of products in Air Conditioning and Refrigerating, including Heat Pump Heat Recovery Unit, Water Source Heat Pump, Air Cooled Screw Chiller, Water Cooled Screw Chiller, Water Cooled Scroll Chiller, Air Cooled Scroll Chiller, Split Type Air Conditioner, Water Cooled Packaged Unit Rooftop Packaged Unit, Air Source Heat Pump, Fan Coil Unit, Air Handling Unit, Heat Recovery Fresh Air Unit, Precision Air Conditioners,Dehumidifiers,etc.Our products are widely used in factories, schools, hospitals, organizations, hotels, supermarkets,marine etc. The customers speak highly of our products.

We can also produce different type air conditioning equipments according to customers' special requirements.
The products of our company have the characteristics of low noise, energy saving and high efficiency. Head-Power follows ISO9001 international quality control system and ISO14001 international environment control system strictly, thus our product quality and services are ensured.

Water-cooled packaged unit,Chiller,Split system,rooftop packaged unit,Dehumidifier,Fresh air handling unt, Heat pump,Heat recovery unit,Metal coil slitting Machine,Leveling cross cutting machine,Flying shear equipment for factories.

Equipment takes the Pearl River Delta as the base point, radiates the Yangtze River Delta inward, encircles the Bohai economic circle, increases market share, and maintains the leading position of domestic peers. In recent years, it has continuously expanded the market of Asia, Africa and Latin America, entered Europe and America, and achieved most of the global strategic goals.
